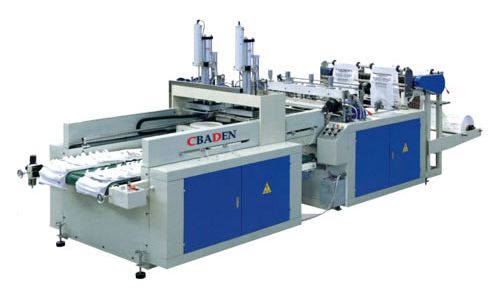

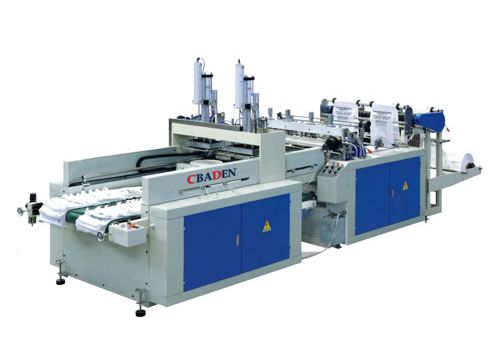

High Speed Plastic Bag Making Machine

High Speed Plastic Bag Making Machine
Request a Quote

The high speed plastic bag making machine is designed to make printed bags, uncolored bags and T-shirt bags using HDPE and LDPE film.

Features
  • The high speed plastic bag making machine adopts PLC control.
  • It uses servo motor.
  • The plastic bag making machine can automatically perform feeding, bottom sealing, cutting, notching and delivering operations.
Technical Specifications of High Speed Plastic Bag Making Machine
Model DFR-400 × 2 DFR-450 × 2
Max. bag width 200-320mm × 2 200-400mm × 2
Max. bag length 350-600 mm × 2 350-600 mm × 2
Bag thickness 001-005 mm 0.01-0.05 mm
Speed 150-200 pcs/min × 2 150-200 pcs/min × 2
Air pressure 5Kg/cm2 5Kg/cm2
Total power 7.5Kw 7.5Kw
Weight 1600Kg 1800Kg
Outline dimensions(L×W×H) 6000 × 1450 × 700mm 6000 × 1550 × 1700mm

Our company is a specialized high speed plastic bag making machine manufacturer based in China. We also offer corrugated box forming machine, hot stamping machine, label slitting machine, printing machine, and much more.
