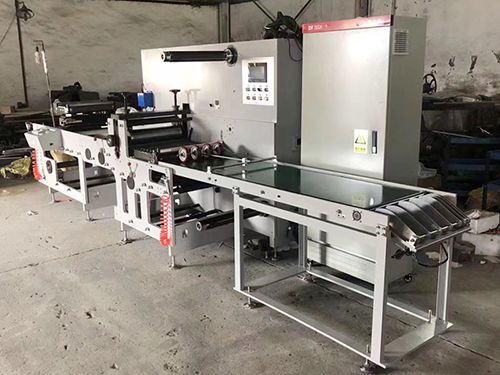

Automatic Rotary Die Cutter

Die-cutting, slitting and rewinding machine
Automatic Rotary Die Cutter
Request a Quote

We are excited to introduce our new product, the auto-rotary die cutting and slitting machine, which has a lot of improvements:

  • Seven sets of servo motors, faster operation;
  • Advanced register sensors, accurate rotary die-cutting performance;
  • Meter counting and automatic stopping, cutting-edge USA web guiding system;
  • This die-cutting and slitting machine can finish working in a single process;
Specifications
Model SAHB320 SAHB450
Slitting speed 90m/min 90m/min
Die-cutting speed 70m/min 70m/min
Max web width 320mm 450mm
Max unwinding diameter 600 mm 600 mm
Max rewinding diameter 600 mm 600 mm
Die cutting length 200mm-470mm 200mm-470mm
Machine weight 2000kg 2300kg
Dimensions (L×W×H) 3.5m×1.3m×1.52m 3.5m×1.5m×1.52m
