Manual Die Cutting and Hot Foil Stamping Machine

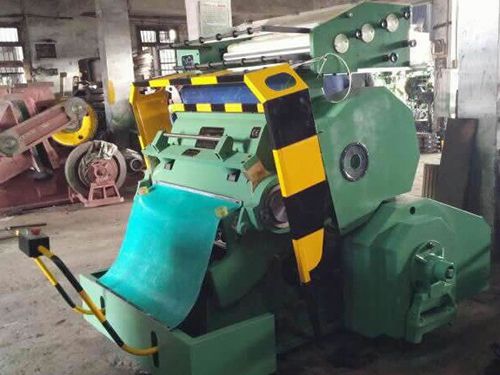

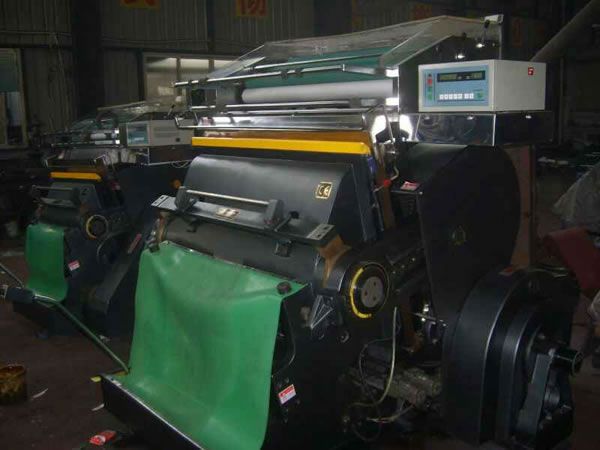

Manual Die Cutting and Hot Foil Stamping Machine
Request a Quote

Model SAH 930/1040/1100/1400

Features
  • The hot foil stamping and die cutting machine is controlled by a chip microprocessor.
  • It offers a foil-feeding rubber roller of electrochemical aluminum driven by separately set length and leapfrog parameters to make the most effective use of the electrochemical aluminum.
  • The purpose of this model is to ensure the system runs stably and reliably so the hot foil stamping and die cutting machine can be maintained easily and simply.
  • Manual Die Cutting and Hot Foil Stamping Machine
  • Manual Die Cutting and Hot Foil Stamping Machine
  • Manual Die Cutting and Hot Foil Stamping Machine
  • Manual Die Cutting and Hot Foil Stamping Machine
  • Manual Die Cutting and Hot Foil Stamping Machine
  • Manual Die Cutting and Hot Foil Stamping Machine
  • Manual Die Cutting and Hot Foil Stamping Machine
  • Manual Die Cutting and Hot Foil Stamping Machine
Applications

The hot foil stamping and die cutting machine is mainly designed for thermo-printing (foil stamping) and embossing various products. It is a type of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc. It is suitable for thermo-printing various paper products with electrochemical aluminum and used as a creasing and die cutting machine for mold cutting and creasing cardboard cases and boxes. Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products.

Technical Specifications of the Manual Die Cutting and Hot Foil Stamping Machine
Model SAH 930 SAH 1100 SAH 1040 SAH 1400
Max. size of inside chase 930×660mm 1100×800mm 1080×780mm 1400×1000mm
Max. size of stamping 930×660mm 1100×800mm 1080×780mm 1400×1000mm
Working s peed 25±2 pcs/min 23±2 pcs/min 23±2 pcs/min 23±2 pcs/min
Groups of feeding foil 3 3 3 3
Max. foil advance 660mm 800mm 780mm 1000m
Leapfrog frequency 0-99 0-99 0-99 0-99
Adjustable temperature 10-300℃ 10-300℃ 10-300℃ 10-300℃
Zones individually heated 5 5 5 5
Heating capacity 12.5 kw 15 kw 15 kw 21 kw
Total power 16.5 kw 20.5 kw 20.5 kw 28.5 kw
Motor power 4kw 4 electrodes 5.5kw 6electrodes 5.5kw 4electrodes 7.5 kw 6 electrodes
Machine weight 4500 kg 6,000 kg 6,000 kg 7,500 kg
Machine dimensions 1960×1760×2060mm 2080×1950×2200mm 2110×1760×2200mm 2450×2050×2400mm
Parameter of Model SAH 1400
Model
Max. size of inside chase 1400×1000mm
Max. size of stamping 1400×1000mm
Working s peed 23±2 pcs/min
Groups of feeding foil 3
Max. foil advance 1000m
Leapfrog frequency 0-99
Adjustable temperature 10-300℃
Zones individually heated 5
Heating capacity 21 kw
Total power 28.5 kw
Motor power 7.5 kw 6 electrodes
Machine weight 7,500 kg
Machine dimensions 2450×2050×2400mm

CBADEN Machinery Group is a hot foil stamping and die cutting machine manufacturer based in China. We offer hot stamping machine, die cutting slotting machine, printing machine, plastic bag making machine, and more.
